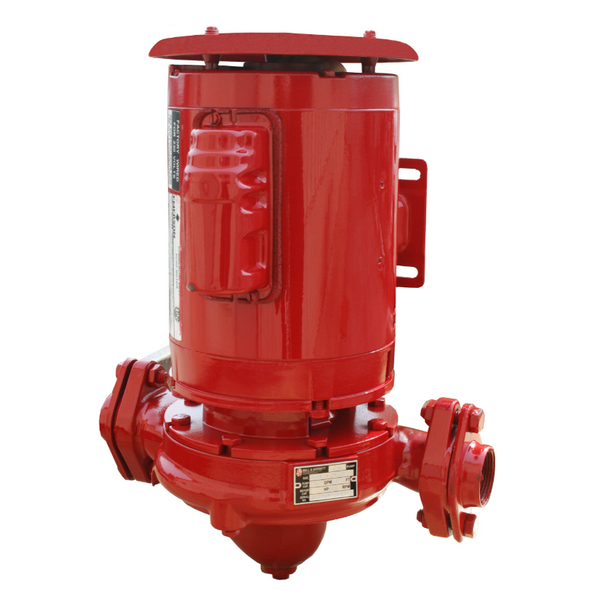

Bell & Gossett 179282LF E9003T 1AAB Series e90 Pump

Description

Boost HVAC circulation with Bell & Gossett 179282LF E9003T, a close-coupled in-line pump built for three-phase zone loops. The compact 1AAB configuration fits smaller hydronic layouts, where correct pump selection helps maintain steady water movement through air handlers, coils, and terminal units. Prime the system and purge trapped air before startup. An air-bound pump can rattle, cavitate, and wear the mechanical seal before the loop reaches normal operating conditions.

The 1/2 HP motor accepts 208–230/460 V three-phase power and drives a 5-1/4-inch bronze impeller. Its 1-inch flanged connection suits compatible HVAC piping, while the close-coupled design keeps the motor and pump together in one assembly. The supplied specifications do not state flow, head, pressure, amp draw, or self-priming capability, so confirm the duty point from the actual system curve before installation.

Key Features of Bell & Gossett 179282LF E9003T

• 1/2 HP motor for three-phase HVAC zone pumping.
• 208–230/460 V voltage configuration.
• 5-1/4-inch bronze impeller.
• 1AAB pump size with 1-inch flanged connection.
• Close-coupled in-line construction.
• Series e-90 high-efficiency pump platform.
• SKU 179282LF and model E9003T for replacement matching.

Why the Bell & Gossett 179282LF E9003T Stands Out

The E9003T gives HVAC contractors a compact three-phase circulator with a bronze impeller and clearly identified flange size. That makes nameplate matching and piping checks more straightforward during replacement work.

• Build: Bronze impeller construction and flanged connection suit compatible hydronic installations; housing material and enclosure rating were not provided.
• Value: Correct motor and system-curve matching can help avoid weak circulation, excess electrical demand, and repeat service calls.
• Audience: Intended for HVAC contractors, boiler-room technicians, facility engineers, and commercial mechanical installers handling three-phase zone loops.

Applications & Use Cases

Use the Bell & Gossett 179282LF E9003T for three-phase HVAC zone pumping, compact secondary loops, boiler branches, and air-handler circuits. The supplied data identifies a 1-inch flanged connection but does not list overall dimensions, unit weight, or port-to-port reach. Verify pipe centerlines, flange clearance, motor access, and mounting support before installation.

Warranty & Support

• 1-Year Limited Warranty, subject to the manufacturer’s applicable terms, installation requirements, and authorized-claim procedures.
• Check the existing nameplate against SKU 179282LF and model E9003T before ordering.

Fill and purge the loop, inspect the inlet strainer, check flange gaskets, and watch the mechanical seal area for leakage during commissioning. Confirm that circuit protection matches the motor voltage and phase, then monitor noise, vibration, and temperature under normal load. Purchase the Bell & Gossett 179282LF E9003T Series e-90 HVAC circulating pump through the store domain associated with this listing for authentic equipment, 1-Year Limited Warranty coverage, and pump assistance.
