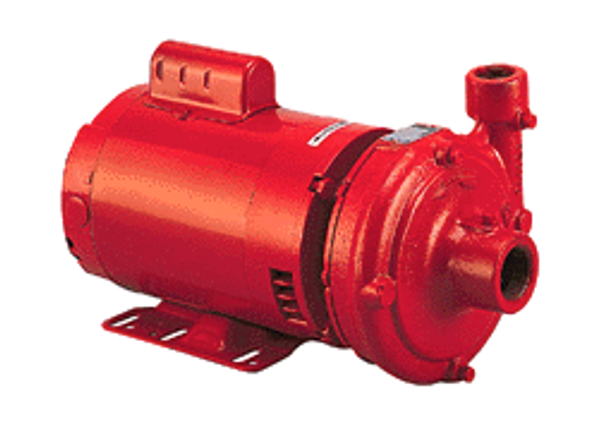

Bell & Gossett 168025 Series 1535 – 353S – 3/4HP Pump

Description

Secondary hydronic loops use Bell & Gossett 168025 Series 1535-353S for pressure boosting, cooling systems, and commercial circulation. Its 3/4 HP single-phase motor accepts 115 or 208 to 230 V, while the close-coupled centrifugal design, NEMA 56J frame, and balanced enclosed impeller support compact installation. Confirm the 225°F temperature limit, system curve, flange arrangement, and suction conditions before startup.

The Series 1535-353S uses a close-coupled configuration with an enclosed balanced impeller and NEMA 56J motor frame. Its single-phase electrical setup supports compatible heating and cooling systems, while verified data does not include GPM, maximum head, amp draw, RPM, seal material, connection size, dimensions, weight, thermal protection, or self-priming capability. Match the pump to the secondary-loop operating point before installation.

Key Features of Bell & Gossett 168025 Series 1535-353S

• 3/4 HP motor supports secondary hydronic loops, cooling systems, and pressure boosting.
• 115 or 208 to 230 V single-phase operation suits compatible commercial circuits.
• Close-coupled centrifugal design connects motor and pump within one assembly.
• Enclosed balanced impeller supports stable hydraulic operation in compatible systems.
• NEMA 56J motor frame supports the specified Series 1535 configuration.
• 225°F maximum operating temperature supports approved heating and cooling applications.
• Series 1535 construction suits commercial hydronic and HVAC circulation requirements.
• Flow, head, amperage, RPM, seal, connections, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 168025 Series 1535-353S

This Bell & Gossett commercial circulator combines flexible voltage with balanced hydraulics and close-coupled installation.

• Build: Enclosed impeller, NEMA 56J framing, and close-coupled construction support compatible hydronic systems.
• Value: Compact installation can reduce equipment-room congestion, while correct curve selection limits overload and flow issues.
• Audience: Commercial HVAC contractors, hydronic installers, boiler technicians, facility engineers, and cooling-system maintenance teams can specify this model.

Applications & Use Cases

Use the Bell & Gossett 168025 Series 1535-353S for secondary hydronic loops, pressure boosting, cooling systems, and commercial HVAC circulation. Physical dimensions, unit weight, and connection reach were not supplied, so verify piping space, valve clearance, motor access, wiring position, lifting room, and service support before installation.

Warranty & Support

• Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
• Verify voltage, purge trapped air, inspect the impeller and seal, confirm flange alignment, and check system flow during commissioning.

Flush system debris, monitor the pump body for leakage, and inspect the coupling and impeller during scheduled service. Purchase the Bell & Gossett 168025 Series 1535-353S commercial hydronic pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
