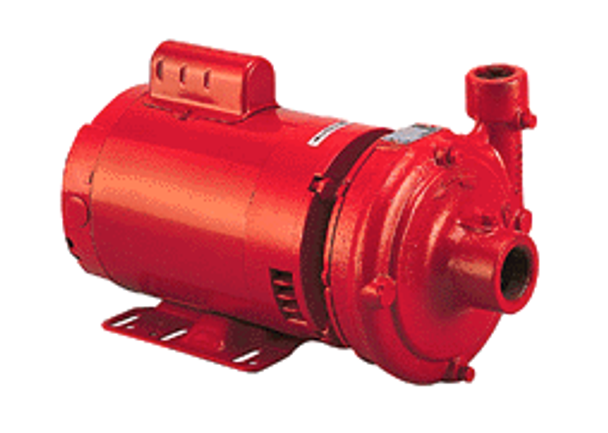

Bell & Gossett 168024 Series 1535 – 352T – 1/2HP Pump

Description

Industrial fluid circulation uses Bell & Gossett 168024 Series 1535-352T for high-demand cooling loops and three-phase process-water service. Its 1/2 HP motor accepts 208 to 230 or 460 V, while the close-coupled design supports direct pump-motor installation in fixed mechanical rooms. Confirm the 175 PSI pressure rating, 225°F temperature limit, phase rotation, and system curve before startup.

The Series 1535-352T uses close-coupled construction with a three-phase motor and flexible voltage configuration. Its 175 PSI maximum working pressure and 225°F operating limit define key system boundaries, but verified data does not include GPM, maximum head, amp draw, RPM, impeller material, seal type, connection size, dimensions, weight, thermal protection, or self-priming capability. Match the pump to the cooling-loop duty point and protect the motor from unsuitable moisture exposure.

Key Features of Bell & Gossett 168024 Series 1535-352T

• 1/2 HP motor supports industrial fluid circulation and high-demand cooling loops.
• 208 to 230 or 460 V three-phase operation suits compatible commercial power systems.
• Close-coupled design connects motor and pump within one compact assembly.
• 175 PSI maximum working pressure supports compatible industrial circulation systems.
• 225°F maximum operating temperature supports approved high-temperature fluid applications.
• Series 1535 configuration suits industrial process-water and cooling-loop circulation.
• Flexible voltage selection assists commercial motor replacement and electrical planning.
• Flow, head, amperage, RPM, impeller, seal, connections, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 168024 Series 1535-352T

This Bell & Gossett industrial circulator combines three-phase flexibility with close-coupled construction for demanding cooling-loop service.

• Build: Close-coupled construction and pressure-rated components support compatible industrial cooling and process-water installations.
• Value: Flexible voltage selection can simplify replacement planning, while correct curve matching reduces overload and poor circulation.
• Audience: Industrial pump contractors, process engineers, cooling-loop technicians, facility engineers, and commercial maintenance teams can specify this model.

Applications & Use Cases

Use the Bell & Gossett 168024 Series 1535-352T for industrial fluid circulation, high-demand cooling loops, process-water service, and commercial hydronic systems. Physical dimensions, unit weight, and connection reach were not supplied, so verify pipe spacing, valve clearance, motor access, wiring position, lifting room, and installation environment before purchase.

Warranty & Support

• Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
• Confirm phase rotation, purge air, inspect the seal area, verify pressure, and check motor protection during commissioning.

Flush system debris, monitor the cast iron assembly for leakage, and review operating temperature during scheduled maintenance. Purchase the Bell & Gossett 168024 Series 1535-352T industrial circulation pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
