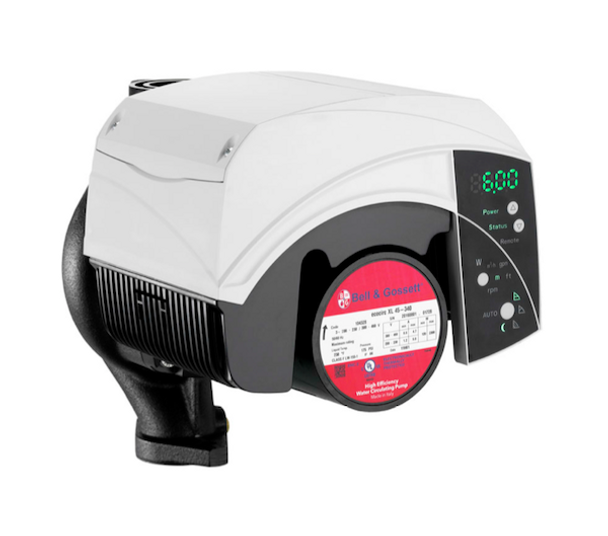

Bell & Gossett 104326 3PH Ecocirc XL 110-180 Iron Body Circulator

Description

Handle high-head institutional circulation with Bell & Gossett 104326 ecocirc XL 110-180, a three-phase ECM circulator for high-rise chilled-water systems and high-resistance industrial piping. Its cast-iron body, 110 feet maximum head, and 180 GPM maximum flow place it in a much larger duty range than standard zone circulators. Verify the system curve, voltage, phase, control wiring, and available pipe clearance before installation.

The high-efficiency ECM motor operates on 208–230/460 V three-phase power and uses a full graphic user interface for setup and operating feedback. Integrated dry-run and overload protection help protect the pump during abnormal conditions, but the supplied data does not state amp draw, connection size, dimensions, weight, or pressure rating. Confirm the current submittal and phase rotation before energizing the unit.

Key Features & Benefits

• Three-Phase ECM Motor: Supports large institutional HVAC systems with electronically controlled circulation.
• 110 Feet Maximum Head: Provides a selection reference for high-resistance chilled-water and industrial piping.
• 180 GPM Maximum Flow: Handles substantial circulation volume in large commercial loops.
• Full Graphic User Interface: Gives technicians direct access to pump settings and operating information.
• Dry-Run Protection: Helps protect the circulator when water is absent or suction conditions fail.
• Overload Protection: Helps limit motor damage during abnormal electrical or operating conditions.
• Cast-Iron Body: Provides the specified casing material for compatible closed-loop HVAC applications.

Why Choose Bell & Gossett 104326 ecocirc XL 110-180

The ecocirc XL 110-180 is intended for large, high-resistance systems where standard circulators cannot meet the required head. Its ECM motor and graphic interface also give commissioning teams more control over setup.

• Build: Cast iron, three-phase ECM technology, integrated protections, and GUI controls define the supplied pump arrangement.
• Value: Dry-run and overload protection can help reduce damage risk during startup and abnormal operating conditions.
• Audience: Suited to hospital engineers, high-rise building operators, industrial HVAC contractors, and central-plant maintenance teams.

Applications & Use Cases

Use Bell & Gossett 104326 ecocirc XL 110-180 for high-rise chilled water, large institutional HVAC, and industrial piping with substantial resistance. The supplied data does not list connection size, overall dimensions, unit weight, or port-to-port reach, so verify pipe support, lifting access, flange arrangement, control-panel clearance, and service space before installation.

Warranty & Support

• Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
• Match SKU 104326, ecocirc XL 110-180 model, three-phase voltage, head, and flow requirements before ordering.

Flush the loop, purge trapped air, confirm phase rotation, verify control wiring, and test the dry-run and overload functions according to the service documentation. Monitor head, flow, vibration, temperature, and operating status during commissioning. Purchase the Bell & Gossett 104326 ecocirc XL 110-180 three-phase ECM circulator through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
