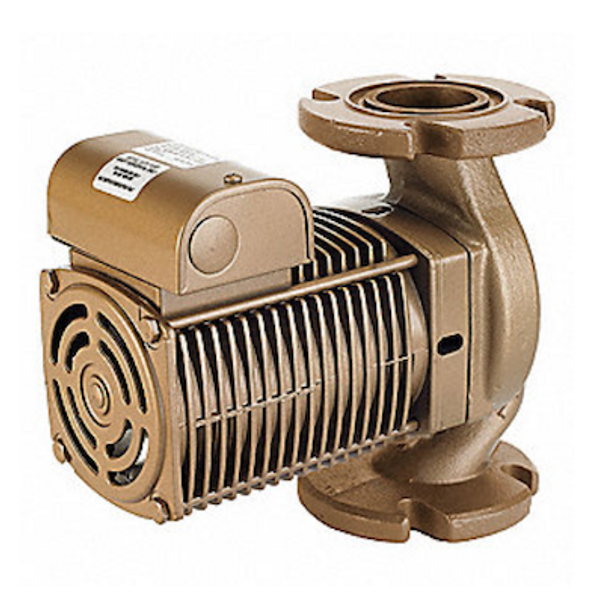

Armstrong E16.2B Series Bronze ARMflo Circulating Pump

Description

Correct the performance data before selecting Armstrong 182202-654 E16.2B, a lead-free bronze ARMflo circulator for potable-water and large commercial hot-water systems. The supplied listing identifies 45 feet of head and 58 GPM flow, while the manufacturer’s current E16.2B submittal identifies up to 68 GPM and approximately 16.8 feet of head. Confirm the verified curve before installation or replacement planning.

The E16.2B uses a 120 V single-phase, two-pole motor rated at approximately 1/2 HP nominal power and 3400 RPM. The bronze body, silicon carbide seal with Viton elastomer, permanently lubricated stainless-steel bearings, and 2-inch four-bolt flange arrangement suit compatible open-loop service. Verify the current pump dimensions, weight, operating temperature, and system pressure before startup.

Key Features & Benefits

• 1/2 HP Nominal Motor: Supports larger commercial potable-water and hydronic circulation duties.
• 120 V Single-Phase: Fits compatible service panels for straightforward field connection.
• 68 GPM Maximum Flow: Handles high-volume circulation within the verified E16.2B performance range.
• 16.8 Feet Maximum Head: Provides the correct lower-head reference for system selection.
• Lead-Free Bronze Body: Supports compatible open-loop and potable-water applications.
• 3400 RPM Two-Pole Motor: Provides the verified operating-speed reference for replacement matching.
• Silicon Carbide Seal: Helps manage shaft leakage with the specified Viton elastomer.
• Permanently Lubricated Bearings: Reduce routine lubrication work during normal service.
• 2-Inch Four-Bolt Flange: Helps contractors verify the correct larger-pipe connection arrangement.

Why Choose Armstrong 182202-654 E16.2B

The E16.2B combines lead-free bronze construction, 120 V service, and high-volume circulation for commercial potable-water systems, but its head and flow data should be corrected before publication.

• Build: Bronze body, stainless-steel bearings, silicon carbide seal, and four-bolt flange define the verified arrangement.
• Value: Correcting the hydraulic ratings helps prevent overestimating head and selecting the pump for the wrong system.
• Audience: Suited to plumbing contractors, hospital maintenance teams, hotel engineers, and commercial DHW installers.

Applications & Use Cases

Use Armstrong 182202-654 E16.2B for large potable-water recirculation, hospital and hotel hot-water loops, and compatible 2-inch four-bolt flange systems. The verified submittal identifies up to 68 GPM flow and approximately 16.8 feet of head, while exact overall dimensions, weight, and port reach require confirmation before installation.

Warranty & Support

• Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Armstrong or the seller.
• Request written confirmation of the corrected E16.2B flow, head, flange, motor, and temperature specifications before ordering.

Flush the piping, purge air, verify the 120 V supply, inspect the four-bolt flange and seal area, and confirm the pump operates within the verified curve. Monitor flow, temperature, vibration, noise, and leakage during commissioning. Purchase the Armstrong 182202-654 E16.2B lead-free bronze potable-water circulator through Mulmotor.com for authentic equipment, applicable warranty support, and model-verification assistance.
