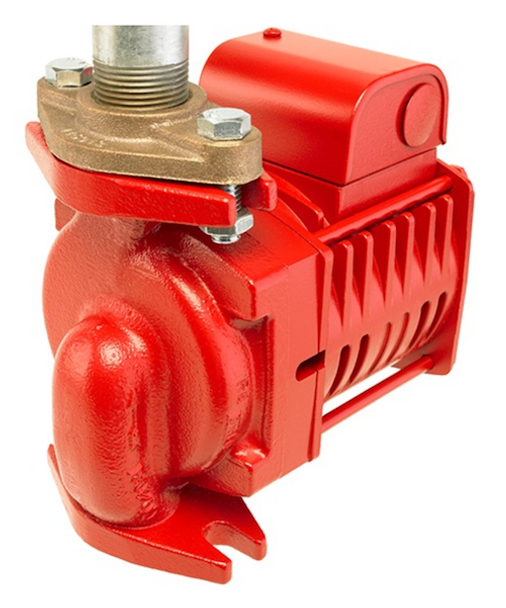

Armstrong 182212-649 E19.2 Cast Iron Circulator Pump

Description

High-head hydronic work can use the Armstrong 182212-649 ARMflo E19.2 with dry-rotor technology, 120 V single-phase power, cast-iron construction, and listed maximum performance of 72 GPM and 43 feet. These specifications provide useful screening references for secondary boiler circulation and replacement equipment evaluation.

The universal two-bolt flange, EPDM or silicon-carbide seal materials, and 230°F maximum operating temperature add important fitment and fluid-condition checks. Maximum flow and head are upper references rather than simultaneous operating guarantees, so final selection requires the actual system curve, resistance, and required circulation duty.

Key Features

• Dry-rotor technology identifies the motor arrangement for equipment and service comparison.
• 120 V single-phase operation supports electrical compatibility checks for the proposed installation.
• Cast-iron body construction provides the documented casing material for hydronic service review.
• Maximum flow is listed as 72 GPM, providing an upper reference rather than a normal duty point.
• Maximum head is listed as 43 feet, requiring comparison with actual system resistance.
• Universal two-bolt flanges support replacement planning with compatible existing piping.
• EPDM and silicon-carbide seal materials provide specific references for fluid and temperature review.

Hydraulic Performance and Application

The E19.2 record lists maximum flow of 72 GPM and maximum head of 43 feet, but these figures do not define a guaranteed operating point. High-head hydronic heating and secondary boiler circulation are the stated applications, while no exact efficiency value or complete performance curve is supplied.

Installation Requirements

Confirm 120 V single-phase power, universal two-bolt flange fitment, fluid temperature below 230°F, seal-material compatibility, flow direction, rotation, and service clearance before commissioning. The 72 GPM and 43-foot limits should be compared with actual system resistance rather than treated as simultaneous operating values.

Warranty and Maintenance

Armstrong provides a 30-Month Limited Warranty from date of manufacture for circulators, covering material and workmanship defects under normal use and service. Improper installation, maintenance, misuse, alteration, negligence, abnormal additives, and normal wear are excluded. Seal condition and dry-rotor service access remain relevant inspection points. Mulmotor can assist with product details and order questions.
