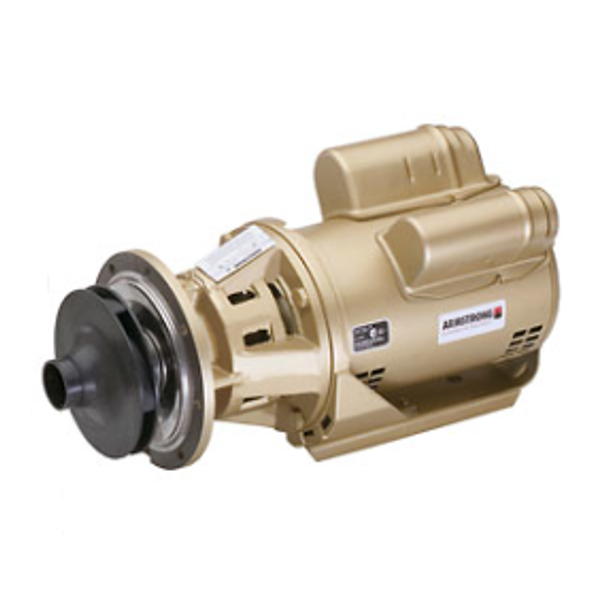

Armstrong 110108MF-675 Raypak 1 Boiler Header Pump

Description

Restore boiler-header circulation with Armstrong 110108MF-675 Raypak 1, a pump-less-volute assembly for high-temperature commercial boiler service. The package includes the motor, bearing assembly, and impeller while allowing a compatible existing volute to remain in the piping. Its 1/3 HP single-phase motor and 115 V supply suit targeted replacement work. Confirm the volute condition, shaft fit, and impeller clearance before installation.

The three-piece maintenance-free design uses a 4-3/8-inch non-ferrous impeller and Viton seal rated for temperatures up to 300°F. The supplied data identifies the base circulator as a 2B 1050 AB LV and lists Raypak, Teledyne, Laars, and Lochinvar equipment as target boilers. Flow, head, amp draw, dimensions, weight, and bolt measurements were not supplied, so verify the existing casing and system curve before startup.

Key Features & Benefits

• 1/3 HP Motor: Supports targeted boiler-header circulation and compatible high-temperature service.
• 115 V Single-Phase: Fits compatible boiler-room electrical service for straightforward replacement planning.
• Less-Volute Configuration: Reuses a compatible casing to reduce piping disturbance during repair.
• 4-3/8-Inch Non-Ferrous Impeller: Provides the listed rotating component for accurate assembly matching.
• Viton Mechanical Seal: Supports the specified high-temperature application up to 300°F.
• Maintenance-Free Design: Reduces routine lubrication work within the replacement assembly.
• Universal SBA: Provides a sealed bearing assembly reference for compatible boiler repairs.
• Raypak 1 Compatibility: Directs selection toward Raypak, Teledyne, Laars, and Lochinvar boiler service.
• 2B 1050 AB LV Base: Identifies the compatible base-circulator reference for replacement checks.

Why Choose Armstrong 110108MF-675 Raypak 1

The Raypak 1 less-volute assembly is useful when the existing volute remains serviceable and the installer wants to renew the rotating pump components without disturbing the piping.

• Build: Three-piece maintenance-free construction, non-ferrous impeller, Viton seal, and universal SBA define the supplied assembly.
• Value: Reusing a sound volute can reduce drainage, pipe removal, and labor during boiler-header repair.
• Audience: Intended for boiler contractors, commercial heating technicians, property maintenance teams, and Raypak service specialists.

Applications & Use Cases

Use Armstrong 110108MF-675 Raypak 1 for boiler-header service, high-temperature circulation, and compatible commercial boilers using the 2B 1050 AB LV base. The supplied data does not provide overall dimensions, unit weight, bolt spacing, shaft length, or port reach, so inspect the existing volute, impeller clearance, casing condition, and service space before ordering.

Warranty & Support

• Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Armstrong or the seller.
• Match SKU 110108MF-675, Raypak 1 model, base circulator, impeller, seal, motor voltage, and existing volute before purchase.

Isolate power, drain the boiler loop, inspect the reused volute for erosion, check shaft alignment, and replace damaged gaskets before assembly. Fill and purge the system, then monitor the Viton seal, vibration, temperature, and circulation during startup. Purchase the Armstrong 110108MF-675 Raypak 1 pump-less-volute boiler header pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump-matching assistance.
