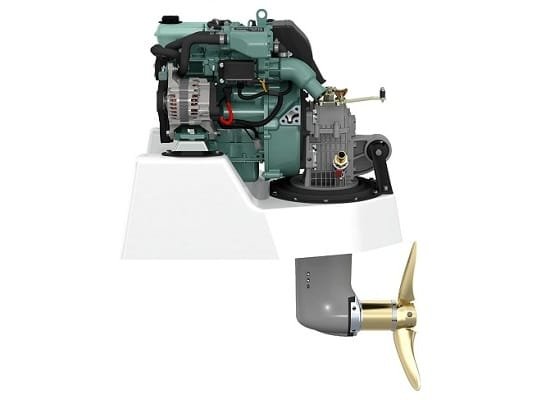

Volvo Penta D1-13 Inboard Diesel Engine
$2,086.00
In Stock
Volvo Penta D1-13 Specs
| Brand | Volvo Penta |
| Full Model Code / Configuration | D1-13F (Vertical 4-cycle water-cooled diesel engine) |
| Country of Origin | Sweden |
| Engine Series / Family | D1 Series |
| Engine Type / Cylinder Block | Inline-2, 4-Stroke (Perkins base block) |
| Displacement | 0.51 Liters / 510 cc |
| Rated Horsepower | 12.2 HP (9.0 kW) @ 3200 RPM |
| Maximum Torque | 31.0 Nm @ 2400 RPM |
| Rated Engine Speed / Redline RPM | 3200 RPM |
| Aspiration & Induction | Naturally Aspirated |
| Fuel System / Injection | Indirect Injection (In-line injection pump, mechanical) |
| Bore x Stroke | 67 mm x 72 mm |
| Compression Ratio | 23.5:1 |
| Electrical System Voltage | 12V |
| Alternator Output | 115 Amps |
| Cooling System Type | Fresh Water Heat Exchanger (Closed-loop system with seawater heat exchanger) |
| Coolant Capacity | 2.7 Liters |
| Exhaust System / Configuration | Wet Exhaust (Water-injected mixing elbow) |
| Emission Compliance | EU RCD 2, US EPA Tier 3, BSO II |
| Lubrication System Capacity | 1.9 Liters (Total system capacity) |
| Recommended Oil Grade | VDS-3 / VDS-4.5, SAE 15W-40 / 10W-30 (API CI-4 / CK-4) |
| Fuel Type / Requirement | Diesel Fuel (EN 590 / ASTM D975 No. 2-D) |
| Fuel Consumption at Cruising Speed | 1.8 Liters/hour @ 2600 RPM (Approx. 75% load) |
| Compatible Marine Gear / Transmission | MS10A, MS10L, 130S (Saildrive) |
| Available Gear Ratios | 2.35:1, 2.72:1 (MS10A) / 2.19:1 (130S) |
| Drive Type Compatibility | Shaft Drive / Saildrive |
| Dry Weight - Engine Only | 96 kg |
| Dry Weight - with Transmission | 109 kg (with MS10A) / 122 kg (with 130S Saildrive) |
| Dimensions - L x W x H | 569 mm x 471 mm x 534 mm (with MS10A) |
| Governor / Engine Control Unit | Mechanical Centrifugal Governor |
| Control System Interface | Mechanical Cables (Analog instrumentation managed via MDI electronic interface) |
| Starting System | Electric starter motor 0.7 kW |
| Flywheel & Housing Size | Proprietary Volvo small pattern |
| Standard Warranty | 2 Years / 1000 Hours (Commercial) or 5 Years (Recreational Limited Warranty) |
| Application | Small monohull sailboats (20–26 feet), pocket cruisers, daysailers, and small displacement river launches. |
