Phasor K4-12.5kW 12.5kW 60 Hz Marine Diesel Generator 1800 RPM Standard Series
In Stock
US $7,938.00
In Stock
Description

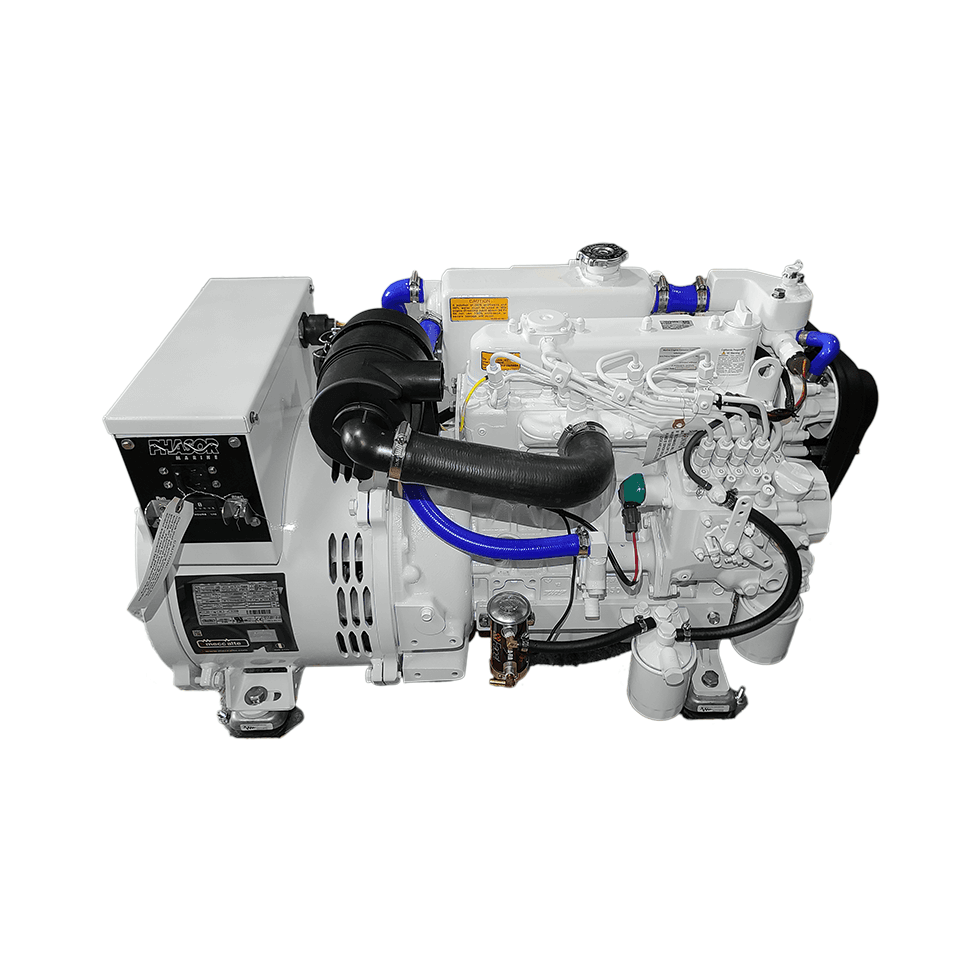

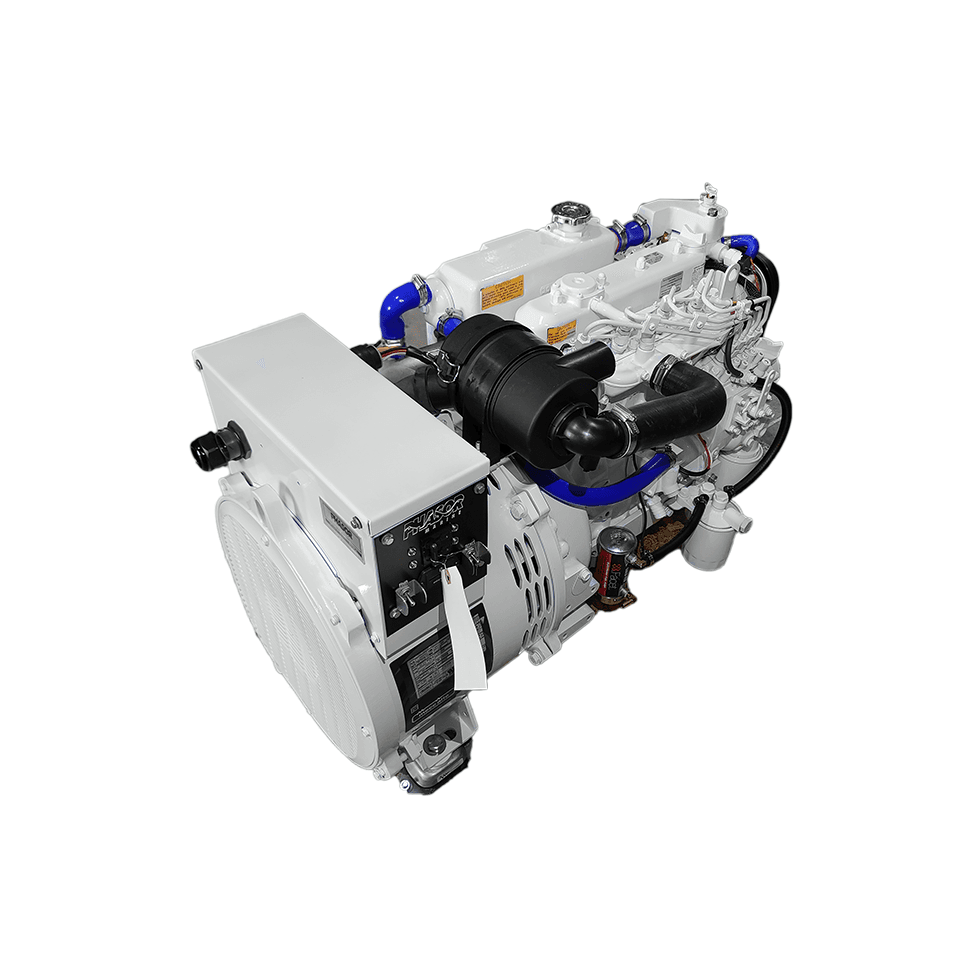

Phasor K4-12.5kW – 12.5kW (60 Hz) Marine Diesel Generator – 1800 RPM Specifications
The Phasor K4-12.5kW Marine Diesel Generator is a workhorse in the Standard Series, delivering a reliable 12.5 kW (60 Hz) capacity. Operating at a slow 1800 RPM, this unit is designed for continuous duty, offering quiet performance and exceptional durability, making it perfect for mid-sized cruising yachts and light commercial applications. This four-cylinder Phasor Marine Generator provides stable, high-quality power for sensitive electronics and primary onboard systems. Choose the K4-12.5kW for its long service life, fuel efficiency, and consistent output under continuous load.
| Kubota Model | V1505-E4BG |
| Number of Cylinders | 4 |
| KW Rating at 60 Hz | 12.5 Kw |
| KW Rating at 50 Hz | 10.5 Kw |
| Cubic Inch Displacement | 91 |
| Fuel Consumption ( Gal/Hr ) | Full Load 1.03 Half Load 0.62 |
| Electric End | Linz |
| Bore x Stroke | 3.07″ x 3.09″ |
| Dimensions (LxWxH) without enclosure | 34.5″ x 18″ x 22.5″ |
| Dimensions (LxWxH) with enclosure | 38″ x 22″ x 25.5″ |
| Weight (lbs.) | 567 |
| R.P.M | 1800 |
| Output (volts) | 120/240 |
| Output (amps) | 104/52 |
| Output (watts) | 12,500 (12.5 KW) at 60 HZ – 10,500 (10.5KW) at 50 HZ |
| Exhaust Dia. | 2.0″ |
| Raw Water Dia. | 3/4″ |
| Fuel Line Dia. | 5/16″ |
| Return Line Dia. | 3/16″ |
