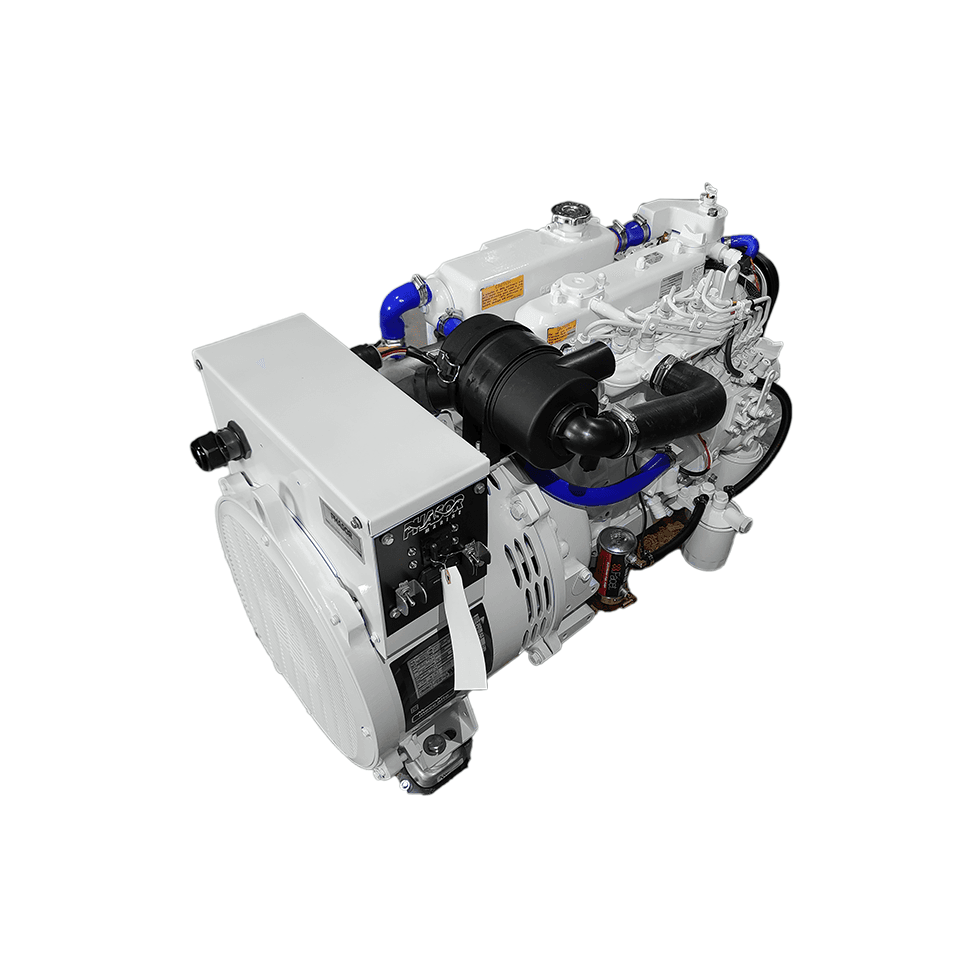

Phasor K3-14.0kW Marine Diesel Generator (Standard Series, 1800 RPM)
$7,254.00
In Stock
Used Phasor K3-14.0kW Marine Diesel Generator (Standard Series, 1800 RPM) Specs
| Brand / Manufacturer | Phasor Marine Power Systems |
| Full Model Code | K3-14.0 kW Standard Heat Exchanger Series |
| Generator Type | Stationary Mid-Range Marine Diesel Generator Set |
| Prime Power Output | 14.0 kW (14,000 Continuous Watts) |
| AC Voltage & Frequency | 120V / 240V AC Single Phase @ 60 Hz |
| Amperage Output | 116.6A @ 120V / 58.3A @ 240V |
| Engine Architecture | Kubota V1505 Series Naturally Aspirated 4-Cylinder Marine Diesel Engine |
| Engine Operational Speed | Static 1,800 RPM (Low Speed, High Harmonic Balancing Profile) |
| Cooling System Type | Cupro-Nickel Heat Exchanger Cooled with Multi-Port Wet Exhaust Mixing Elbow Assembly |
| Fuel System Layout | Bosch-Type Injection Pump, Mechanical Governor, and Secondary Spin-On Fuel Filtration Core |
| Starting System | 12V DC Electric Start Configuration and Integrated Drivetrain Battery Charger Unit |
| Alternator Regulation | Single-Bearing Brushless Generator Unit featuring Microprocessor Automatic Voltage Regulation |
| Safety Management Systems | Low Oil Level Interrupt Protection and High-Temperature Coolant Automated Ignition Kill Interlocks |
| Net Weight | Approx. 281.2 kg (620.0 lbs) Dry Base Weight Range |
| Dimensions L x W x H | 914 mm x 533 mm x 584 mm (36.0" x 21.0" x 23.0") |
| Certifications | EPA Marine Spark/Emissions Compliant Threshold, Manufactured Class Assembly Standards |
| Ideal Application | Excellent match for active liveaboard cruisers or commercial charter fleets requiring constant high-amperage 120/240V power to drive dual watermakers, heavy cooktops, and marine climate controllers. |
