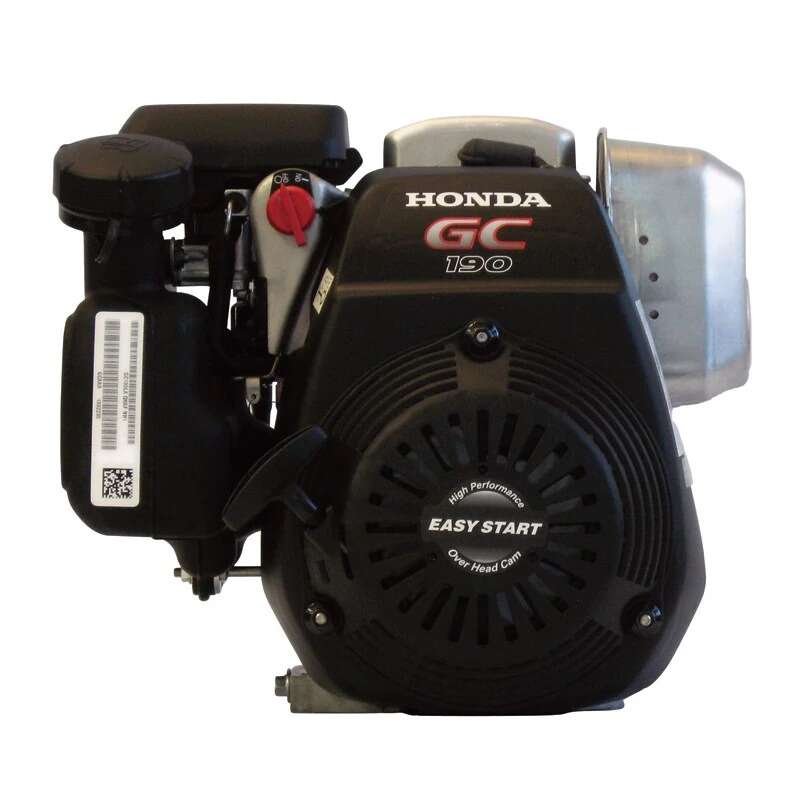

Honda GC190-MHA2 5.2HP Horizontal Engine
$179.00
In Stock
Honda GC190-MHA2 Technical Specs
| Brand | Honda |
| Full Model Code | GC190-MHA2 |
| Country of Origin | USA/Japan Design |
| Engine Orientation | Horizontal Shaft |
| Engine Type | 4-Stroke, OHC, Single Cylinder |
| Displacement | 187 cc |
| Bore x Stroke | 69 x 50 mm |
| Compression Ratio | 8.5:1 |
| Maximum Output | 3.9 kW (5.2 HP) @ 3600 RPM |
| Maximum Torque | 11.2 Nm (8.3 lbs-ft) @ 2500 RPM |
| Specific Fuel Consumption | 1.3 L/hr @ 3600 RPM |
| Fuel Induction System | Butterfly Carburetor |
| Ignition System | Transistorized Magneto |
| Start System | Recoil Start |
| Shaft Specification | 3/4" (19.05 mm) Straight Keyway Shaft |
| Fuel Tank Capacity | 1.8 Liters |
| Oil Capacity & Type | 0.58 Liters / SAE 10W-30 |
| Cooling System | Forced Air Cooled |
| Dry Weight | 14.4 kg |
| Dimensions | 340 x 369 x 331 mm |
| Standard Warranty | 2 Years (Consumer) |
| Primary Application | Heavy Duty Residential Pressure Washers, Tillers |
Honda GC190-MHA2 Engine Included:
- 1x New GC190-MHA2 5.2HP Horizontal Engine
- 1x Specialized Flanged Pressure Washer Tapered Shaft
- 1x Overhead Cam OHC Compact Valvetrain Base
- 1x Maintenance Free High Energy Ignition System
- 1x Convenient Integrated Fuel Reservoir Tank Core
- 1x Official Honda Engines Limited Warranty Card
- 1x Technical Engine Operation Installation Guide Manual
