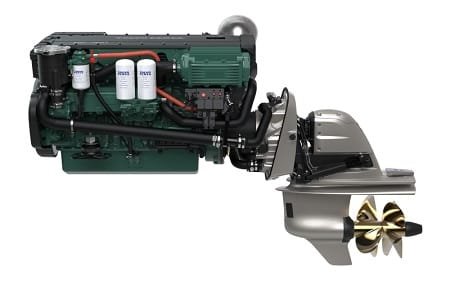

Volvo Penta D6-300 Inboard Diesel Engine
$13,510.00
In Stock
Volvo Penta D6-300 Specs
| Brand | Volvo Penta |
| Full Model Code / Configuration | D6-300I-G (In-line 6-cylinder diesel engine) |
| Country of Origin | Sweden |
| Engine Series / Family | D6 Series (Latest Generation) |
| Engine Type / Cylinder Block | Inline-6, 4-Stroke |
| Displacement | 5.50 Liters / 5,500 cc |
| Rated Horsepower | 300 HP (221 kW) @ 3000 RPM |
| Maximum Torque | 780 Nm @ 1500–2400 RPM |
| Rated Engine Speed / Redline RPM | 3000 RPM |
| Aspiration & Induction | Turbocharged, Charge Air Cooler (Aftercooled) |
| Fuel System / Injection | Common Rail System (Direct Injection, Piezo Injectors, 2000 bar) |
| Bore x Stroke | 103 mm x 110 mm |
| Compression Ratio | 16.0:1 |
| Electrical System Voltage | 12V (Standard) / 24V (Optional) |
| Alternator Output | 150 Amps (12V) |
| Cooling System Type | Fresh Water Heat Exchanger (Closed-loop system with seawater-cooled heat exchanger) |
| Coolant Capacity | 16.0 Liters |
| Exhaust System / Configuration | Wet Exhaust (Water-cooled stainless steel exhaust riser) |
| Emission Compliance | US EPA Tier 3, EU RCD 2, IMO NOx Tier II |
| Lubrication System Capacity | 20.0 Liters (Total system capacity) |
| Recommended Oil Grade | VDS-4.5, SAE 15W-40 / 10W-30 (API CK-4) |
| Fuel Type / Requirement | Ultra-Low Sulfur Diesel (ULSD, EN 590 / ASTM D975 No. 2-D) |
| Fuel Consumption at Cruising Speed | 34.1 Liters/hour @ 2400 RPM (At semi-displacement cruise load) |
| Compatible Marine Gear / Transmission | HS85A, HS85IV (V-Drive), ZF286A |
| Available Gear Ratios | 1.51:1, 2.00:1, 2.48:1 (HS85A) / 1.48:1, 1.75:1, 1.96:1 (ZF286A) |
| Drive Type Compatibility | Shaft Drive / V-Drive |
| Dry Weight - Engine Only | 585 kg |
| Dry Weight - with Transmission | 675 kg (with HS85A) / 700 kg (with ZF286A) |
| Dimensions - L x W x H | 1098 mm x 831 mm x 845 mm (Engine only dimensions) |
| Governor / Engine Control Unit | Electronic Vessel Control (EVC-E2 / EMS 2.4 ECU) |
| Control System Interface | Volvo Penta EVC System (NMEA 2000, J1939 CAN-bus integrated instrumentation) |
| Starting System | Electric starter motor 3.7 kW (12V) |
| Flywheel & Housing Size | SAE No. 3 |
| Standard Warranty | 2 Years / 1000 Hours (Commercial) or 5 Years (Recreational Limited Warranty) |
| Application | Heavy displacement coastal cruisers, displacement trawlers, luxury inland river boats, and commercial workboats. |
