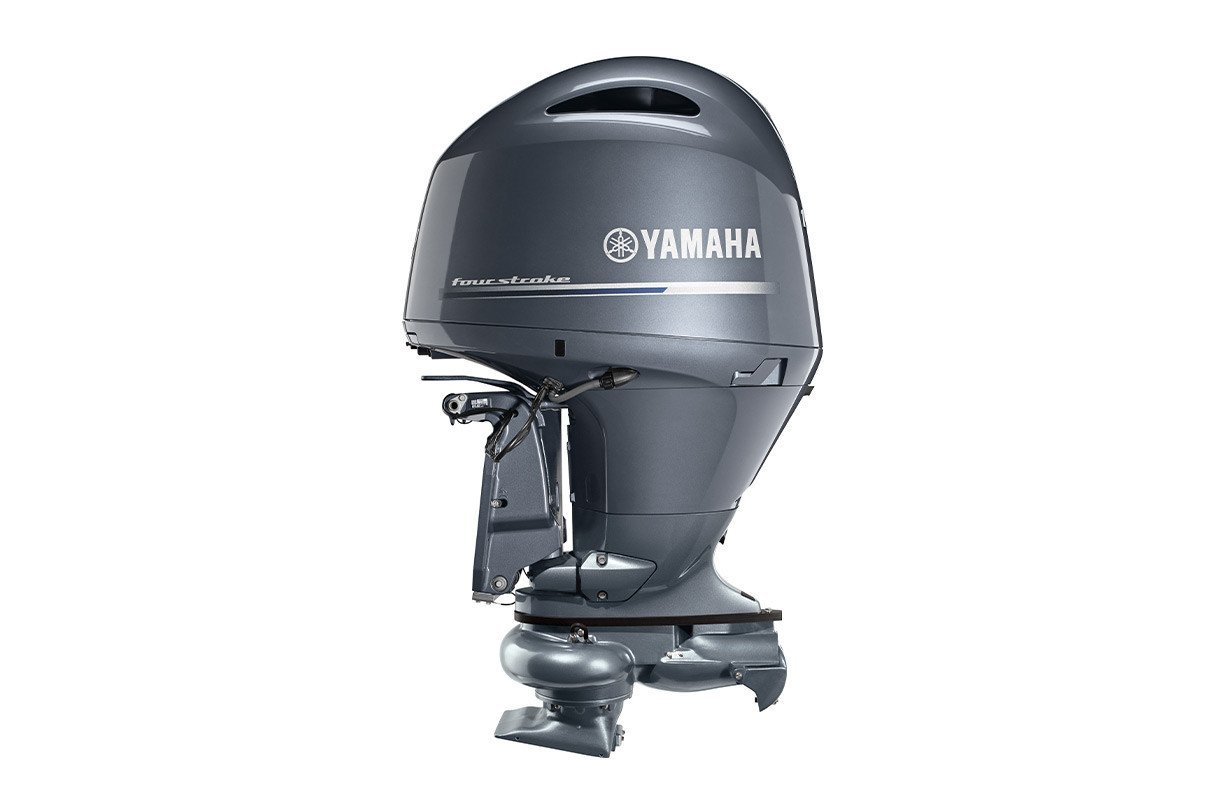

Yamaha 60HP F60JB Jet Drive 4-Stroke Outboard
Description
Yamaha 60HP F60JB Jet Drive Versatility
Featuring a specialized jet pump instead of a traditional propeller, the Yamaha 60HP F60JB is the ultimate engineering solution for navigating shallow rivers and rocky shoals. This 996cc engine family is optimized for torque density, allowing for a rapid hole-shot in just inches of water. Technology like the centrifugal pump replaces the lower unit, ensuring no snagging on underwater obstructions. The system maintains maximum thermal stability via a high-flow cooling intake, providing reliable propulsion where propped outboards cannot operate.
Fuel induction efficiency is sustained in the Yamaha 60HP F60JB via an advanced Multi-Point EFI system for smooth acceleration and easy starts. To mitigate oxidation in high-salinity or silty environments, the chassis utilizes Yamaha’s YDC-30 aluminum alloy and corrosion-resistant fasteners. Maintenance is simplified with 100-hour service intervals and easy access to the jet impeller for debris removal. This model offers high ownership value for technical anglers, combining the reliability of a 4-stroke block with the freedom of jet propulsion.
Key Features of Yamaha F60JB
- 996cc 4-Cylinder 4-Stroke SOHC.
- 40 HP Jet-Rated Output @ 5000-6000 RPM.
- 20-Inch Transom Height / 262 lbs Chassis.
- Electronic Fuel Injection (EFI).
- Remote Control / Power Trim and Tilt.
- Electric Start / 16-Amp Alternator.
- 1.00:1 Jet Pump Ratio / 2.2qt Oil Capacity.
Yamaha 60HP F60JB Jet Drive Specs
| Brand | Yamaha |
| Full Model Code | F60JB (Jet) |
| Country of Origin | Japan |
| Engine Family/Series | Jet Drive Series |
| Engine Type | SOHC Inline-4 |
| Displacement | 0.996 Liters (996 cc) |
| Horsepower | 40 HP (At Pump) / 60 HP (Engine) |
| Full Throttle RPM Range | 5000 - 6000 RPM |
| Fuel Induction System | EFI (Electronic Fuel Injection) |
| Alternator Output | 17 Amps |
| Gear Ratio | 1.0:1 (Direct Drive Pump) |
| Shaft Length | Jet (Requires 25" Transom) |
| Dry Weight | 121 kg (267 lbs) |
| Bore x Stroke | 65.0 x 75.0 mm |
| Starting & Steering System | Electric / Remote Control |
| Trim/Tilt Method | Power Trim & Tilt |
| Oil Capacity | 2.1L |
| Recommended Fuel | 87 Octane |
| Standard Warranty | 3-Year Limited Pleasure Craft |
| Application | Shallow Water Aluminum Boats and River Running Skiffs (14-18ft) |
