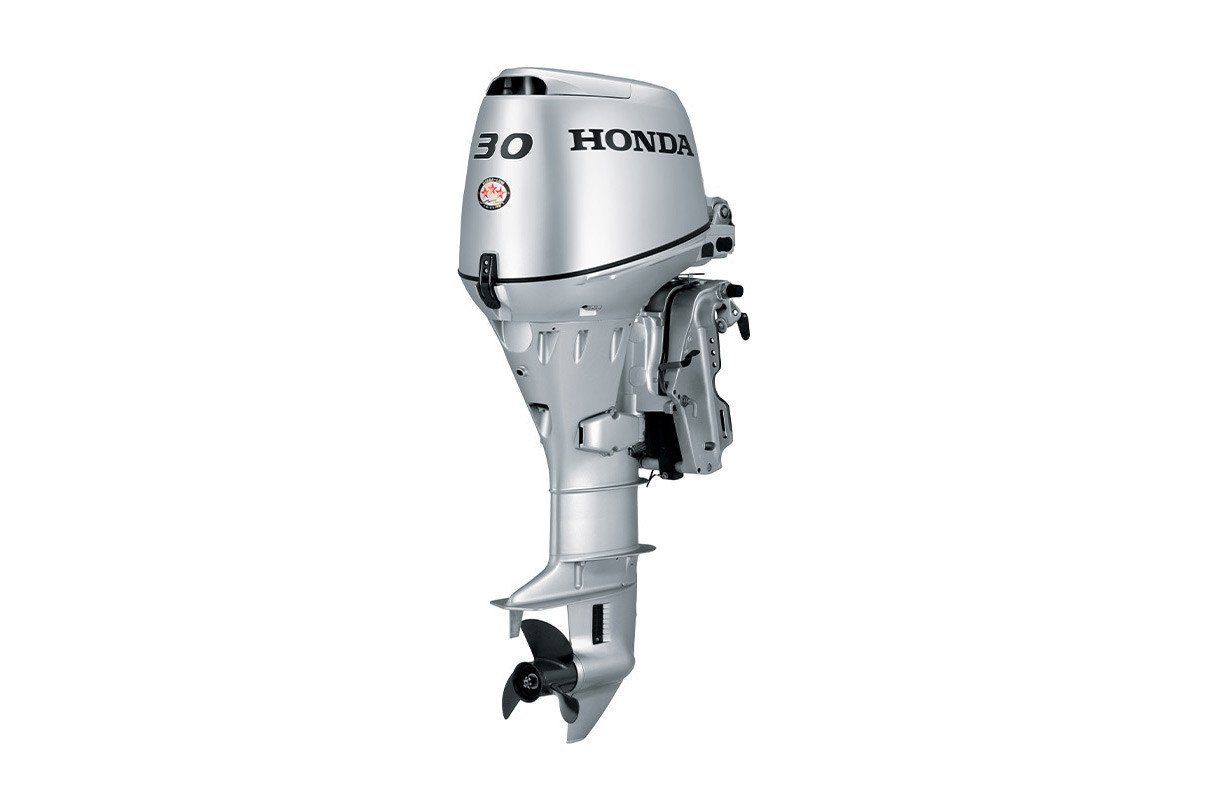

Honda 30HP BF30D3SRT 4-Stroke Outboard – 15″ Shaft, Remote, Electric Start/Power Trim
The Honda BF30D3SRT is a 30HP 0.55L inline-three four-stroke outboard motor featuring a 15-inch short shaft, power trim, and remote mechanical steering interfaces.
- Engine type: Four-stroke I3 552cc SOHC block.
- Fuel system: Three-carburetor design for excellent throttle response.
- Shaft length: 15 inch short shaft size.
- Features: Power Trim & Tilt for hull adjustment.
- Control: Remote mechanical cable control system.
Description
Honda BF30D3SRT 30HP Outboard Motor
To address the requirement for high-displacement thrust and precise trim management on short-transom hulls, the Honda 30HP BF30D3SRT 4-Stroke utilizes a 552cc 3-cylinder architecture. This engineering configuration is optimized for 15-inch transom applications requiring a remote mechanical interface and integrated Power Trim and Tilt for optimal hull leveling. By utilizing a long-stroke design and Programmed Fuel Injection, the system ensures exceptional low-end torque for rapid hull planning on compact fiberglass or aluminum vessels. Hydrodynamic casing refinements on the lower unit minimize water resistance to ensure every kilowatt of energy translates into efficient forward movement for maritime operators.
Maintaining peak operational efficiency while meeting stringent emission standards ensures the Honda 30HP BF30D3SRT provides the marine propulsion platform reliability required by professional operators. Corrosion resistance is maximized through the use of the 4-Front Corrosion Protection System and sacrificial anodes supported by a robust freshwater flushing mechanism. The high-output 10-amp alternator delivers steady electrical current to support navigational electronics and maintain battery health during intense maritime operations. This robust mechanical framework ensures thermal stability and structural reliability even when the engine is pushed to its absolute limits in tropical marine environments.
Key Features of Honda 30HP BF30D3SRT
- 30HP 4-stroke delivers smooth and quiet 3-cylinder power
- Programmed Fuel Injection (PGM-FI) optimizes fuel atomization
- 160 lbs chassis provides excellent power-to-weight ratio
- 15 inch shaft clears short-transom hulls
- Power Trim and Tilt provides effortless hull adjustment
- Auto-start enrichment simplifies cold-weather ignition
- 5 year warranty includes nationwide service network
Honda 30HP BF30D3SRT Specs
| Brand | Honda Marine |
| Full Model Code | BF30D3SRT |
| Country of Origin | Japan |
| Engine Family/Series | L3 Series |
| Engine Type | Inline 3 / 6-Valve SOHC / 4-Stroke |
| Displacement | 0.55 Liters (552 cc) |
| Horsepower | 30 HP @ 6000 RPM |
| Full Throttle RPM Range | 5700 - 6200 RPM |
| Fuel Induction System | 3-Carburetor System w/ Accelerator Pump |
| Alternator Output | 10 Amps |
| Gear Ratio | 2.08:1 |
| Shaft Length | 15" (Short) |
| Dry Weight | 70.5 kg (155 lbs) |
| Bore x Stroke | 61 x 63 mm |
| Starting & Steering System | Electric w/ Remote Mechanical Control |
| Trim/Tilt Method | Power Trim & Tilt |
| Oil Capacity | 1.9L |
| Recommended Fuel | 86 Octane |
| Standard Warranty | 5-Year Non-Declining |
| Application | Short-shaft sport boats and aluminum skiffs needing integrated power trim. |
