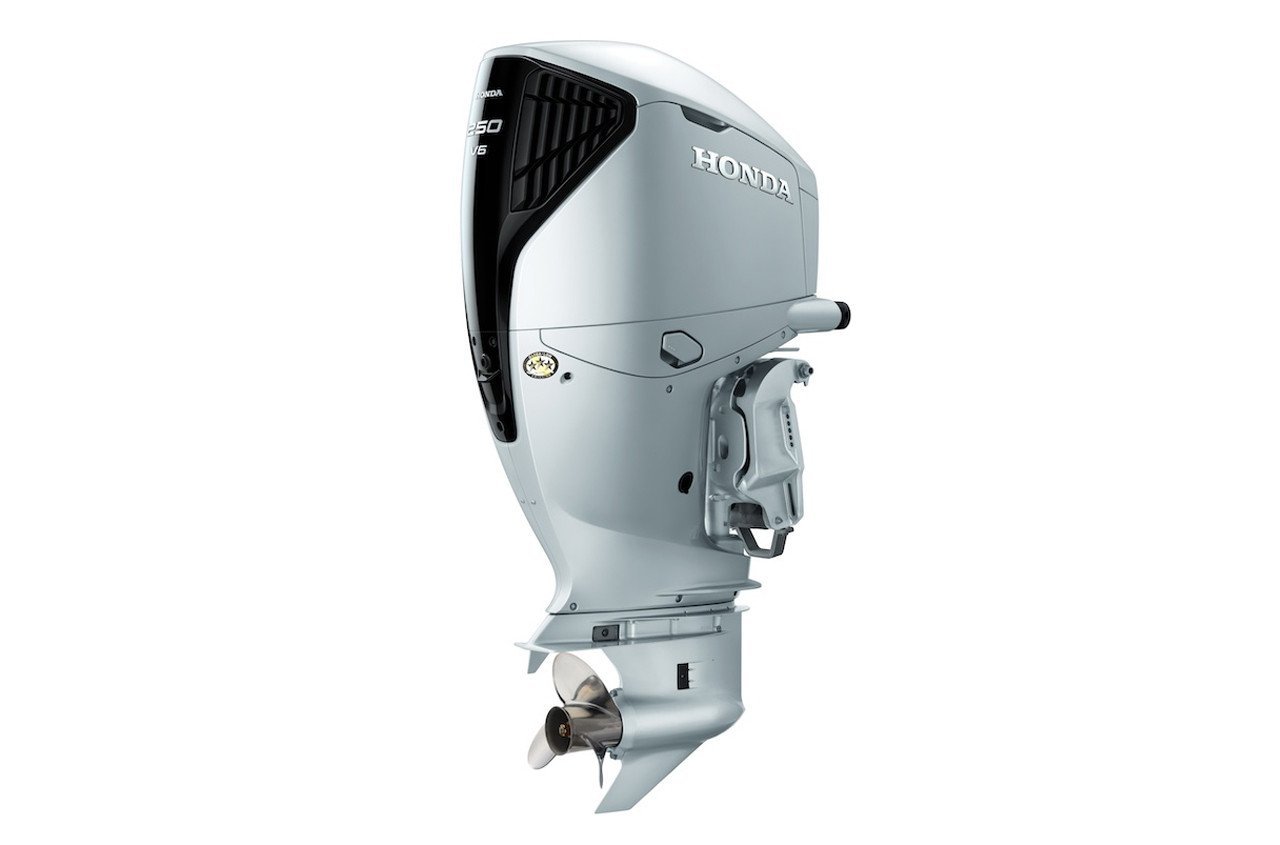

Honda 250HP BF250DK1XCDA iST Outboard – 25″ Shaft, Counter Rotation, Intelligent Shift & Throttle
The Honda BF250DK1XCDA is a 250HP 3.6L V6 four-stroke counter-rotation outboard motor featuring a 25-inch shaft and intelligent shift throttle systems.
- Engine type: Four-stroke V6 3.6L SOHC VTEC.
- Fuel system: Programmed multi-port electronic fuel injection.
- Shaft length: 25 inch long shaft size.
- Gearcase: Counter rotation left-hand propulsion system.
- Control: Intelligent shift and throttle system.
Description
Honda BF250DK1XCDA 250HP Outboard Motor
To resolve the complexities of propeller ventilation and handling imbalances in dual-engine setups the Honda 250HP BF250DK1XCDA iST integrates a specialized counter-rotation gearcase within its V6 powerhead architecture. This engineering approach utilizes precision fuel atomization and a 3.6L displacement to maintain consistent combustion cycles during aggressive offshore maneuvers. Featuring a high-efficiency 2.00:1 gear ratio the system generates significant thrust necessary for heavy deep-V hull applications on 25-inch transoms. Hydrodynamic casing refinements minimize mechanical drag to ensure every kilowatt of energy translates into efficient forward movement for professional maritime operators requiring synchronized propulsion performance.
Maintaining operational longevity while meeting current emission standards ensures this offshore propulsion system delivers sustainable performance in varied marine habitats. Corrosion resistance is maximized through the implementation of specialized alloys and sacrificial anodes alongside a pressurized freshwater flushing mechanism within the engine block. Integrated charging systems provide steady alternator amperage to support modern Intelligent Shift and Throttle controls and maintain battery health during high-draw navigational operations. This robust mechanical framework ensures thermal stability and structural reliability even when the V6 block is subjected to continuous high-load propulsion cycles in demanding tropical sea states.
Key Features of Honda 250HP BF250DK1XCDA
- 250HP 4-stroke delivers consistent low-end torque
- Programmed Fuel Injection cuts fuel consumption 20%
- 600 lbs chassis optimizes transom weight distribution
- 25 inch shaft clears deep-V transoms
- Electric start ensures instantaneous cold weather ignition
- Multi-stage cooling prevents internal saltwater corrosion
- 5 year warranty includes nationwide service network
Honda 250HP BF250DK1XCDA iST Specs
| Brand | Honda Marine |
| Full Model Code | BF250DK1XCDA |
| Country of Origin | Japan |
| Engine Family/Series | V6 VTEC® iST (Counter Rotation) |
| Engine Type | V6 60° / 24-Valve SOHC |
| Displacement | 3.6 Liters (3583 cc) |
| Horsepower | 250 HP @ 5800 RPM |
| Full Throttle RPM Range | 5300 - 6300 RPM |
| Fuel Induction System | Programmed Fuel Injection (PGM-FI) |
| Alternator Output | 90 Amps (60 Charging Amps) |
| Gear Ratio | 2.00:1 |
| Shaft Length | 25" (X-Long) |
| Dry Weight | 278 kg (613 lbs) |
| Bore x Stroke | 89 x 96 mm |
| Starting & Steering System | Electric w/ iST (Intelligent Shift & Throttle) |
| Trim/Tilt Method | Power Trim & Tilt |
| Oil Capacity | 7.8L |
| Recommended Fuel | 86 Octane |
| Standard Warranty | 5-Year Non-Declining |
| Application | Port-side unit for offshore center consoles and twin configurations. |
