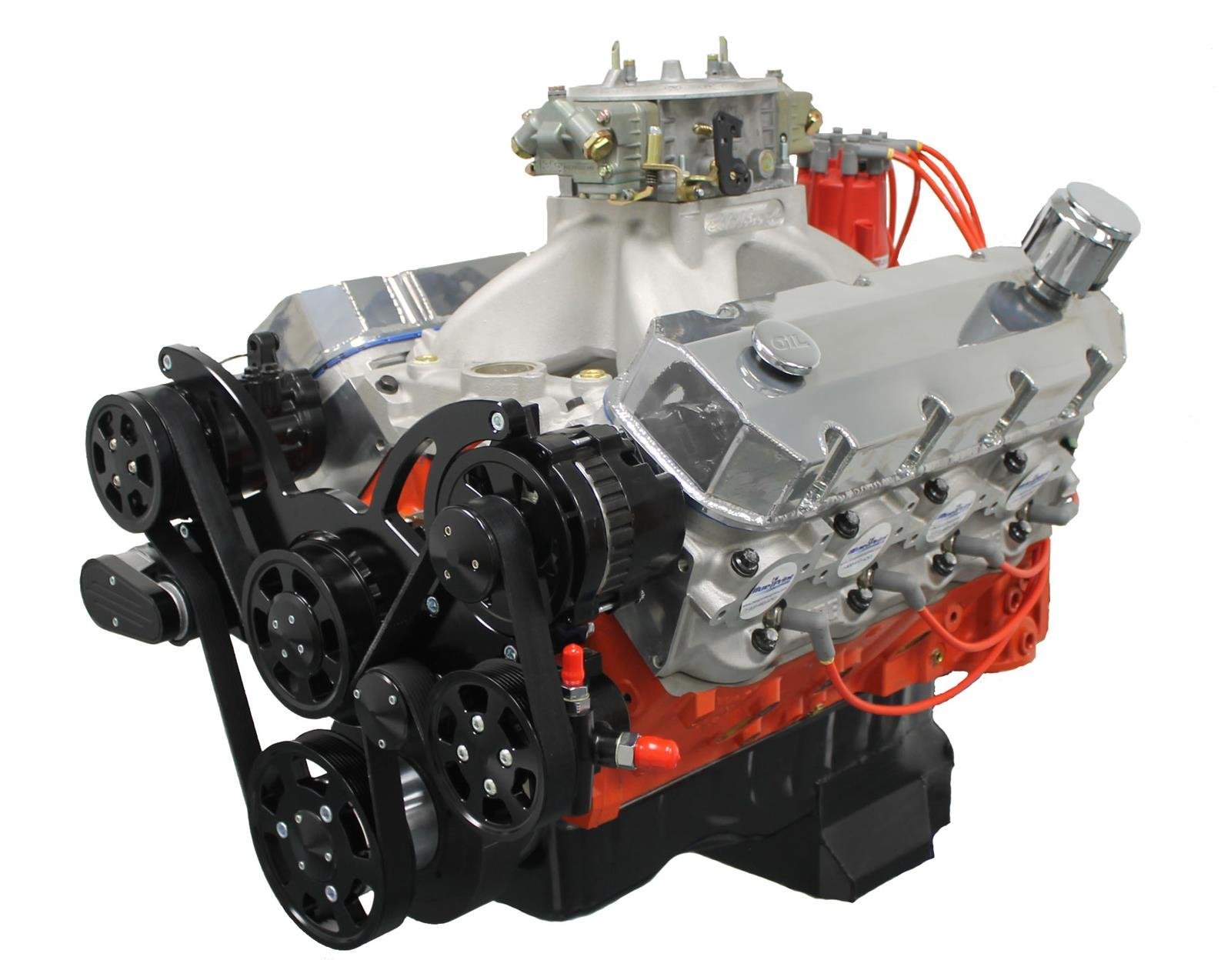

BluePrint PS5720CTCKB Pro 572 745 HP Fully Dressed Engine
BluePrint PS5720CTCKB Pro 572 745 HP Fully Dressed Engine features elite engine technology combined with high-flow aluminum heads to deliver reliable track-proven power for Big Blocks.
- Stroker Volume: 9.4L / 572 CI displacement.
- Cylinder Heads: Aluminum High Flow heads.
- Engine Foundation: Cast Iron Block material.
- Energy Delivery: 745 HP performance output.
- Dress Level: Fully dressed complete assembly.
30-Month Limited Warranty Info Included.
Description
BluePrint PS5720CTCKB 745 HP Fully Dressed LB
BluePrint PS5720CTCKB Pro 572 745 HP Fully Dressed Engine units provide an all-in-one propulsion solution for enthusiasts demanding elite 745 HP results and professional aesthetics in their Big Block Chevy project. Featuring advanced aluminum cylinder heads and a 10.0:1 compression ratio, this 572ci assembly is engineered to provide aggressive power delivery and mechanical stability. This powertrain is a world-class fit for iconic GM muscle cars where a ready-to-run 9.4L engine and massive Big Block torque are required.
Integrating this drop-in high-torque engine is simplified by the inclusion of a factory-installed carbureted induction system, water pump, and HEI ignition system. The BluePrint PS5720CTCKB arrives fully dressed with essential components including spark plugs and ignition wires, all protected by an industry-leading 30-Month / 50,000-mile limited warranty. Built on a seasoned cast-iron block for maximum integrity, this Stage 3 assembly features a modern one-piece rear main seal and an internal balance to ensure smooth and reliable high-performance operation.
Key Features of BluePrint Pro Series PS5720CTCKB
- 9.4L 572ci displacement delivering 745 horsepower performance.
- High-flow aluminum cylinder heads for superior thermal management.
- Fully dressed configuration includes induction, cooling, and ignition components.
- Hydraulic roller camshaft ensures smooth and consistent valvetrain duration.
- Internal engine balance for vibration-free power delivery.
- Modern one-piece rear main seal prevents common Big Block fluid leaks.
- Backed by a professional 30-Month / 50,000-mile limited warranty.
PS5720CTCKB Include:
- Intake Manifold
- Carburetor
- Distributor
- Oil Pan
- Valve Covers
- Timing Cover
- Water Pump
- Harmonic Balancer
- Spark Plugs
- Spark Plug Wires
BluePrint PS5720CTCKB Pro 572 CID 745 HP Fully Dressed Specs
| Brand | BluePrint Engines |
| Engine Model | PS5720CTCKB |
| Part Type | Crate Engines |
| Product Line | BluePrint Engines Pro Series Chevy 572 C.I.D. 745 HP Fully Dressed Long Block Crate Engines |
| UPC | 00887753744470 |
| Crate Engine Family | Chevy Big Block |
| Actual Engine Displacement | 9.4L / 572 |
| Cylinder Head Material | Aluminum |
| Engine Block Material | Cast iron |
| Advertised Compression Ratio | 10.0:1 |
| Assembled | Yes |
| Engine Balance | Internal |
| Cam Style | Hydraulic roller, OE roller |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | Yes |
| Intake Manifold Style | Carbureted |
| Cylinder Heads Included | Yes |
| Carburetor Included | Yes |
| Throttle Body Included | No |
| Distributor Included | Yes |
| Oil Pan Included | Yes |
| Valve Covers Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| Supercharger Included | No |
| Warranty Info | 30-Month / 50,000 Miles |
