Bell & Gossett Series e-1532 2.5AC 1HP 1750 RPM 3PH ODP Pump

Description

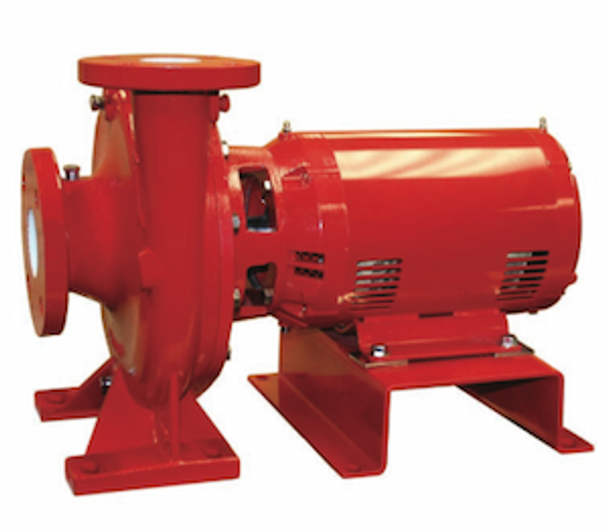

Bell & Gossett Series e-1532 2.5AC 1HP 1750 RPM 3PH ODP Pump

The Bell & Gossett Series e-1532 2.5AC 1HP 1750 RPM 3PH ODP Pump is a high-efficiency centrifugal pump from the renowned e-1532 line. Engineered for medium-flow applications in hydronic systems, this 1 HP, 3 Phase pump runs at a quiet, durable 1750 RPM. The ODP (Open Drip Proof) motor enclosure is suitable for clean, dry indoor environments. The e-1532 series is celebrated for its low life-cycle cost and superior hydraulic efficiency. Choose this reliable Bell & Gossett Centrifugal Pump for robust, long-term, and energy-efficient fluid circulation in commercial HVAC.

Bell & Gossett Series e-1532 2.5AC 1HP 1750 RPM 3PH ODP Pump. The new Bell & Gossett Series e-1532 space-saving, close-coupled, end suction pump with footed volute has been designed to offer the highest overall efficiencies in the market for HVAC and plumbing applications. With the largest “Efficiency Island” compared to other similar pumps, the e-1532 reduces electricity consumption, improves overall system performance and lowers life cycle costs. This new and extensive product line enables users to maintain significantly higher levels of efficiency over a much wider range of operating conditions. The Series e-1532’s exceptional performance is the result of cutting edge computational fluid dynamics (CFD) design technology, deep hydraulic engineering expertise, and Xylem’s comprehensive knowledge of HVAC and plumbing applications.

The Series e-1532 is available in 26 sizes and a variety of configuration options that enables customization and flexibility to fit a broad range of operating conditions.

An end suction, close-coupled, foot-mounted pump available in 1.25” through 8” discharge. Motor size 3/4 to 50 HP at 1750 RPM, 2 to 60 HP at 3500 RPM. Stainless steel construction with flows to 2300 GPM, heads to 400 feet. Close-coupled, space-saving economy plus rugged construction make the Series e-1532 the ideal selection for a variety of applications. Available with the B&G standard self-flushing Carbon/Ceramic mechanical seals in 175# working pressure design.

Applications
Hydronic heating and cooling systems, general service, cooling towers and industrial uses.

Features and Benefits

• “Best in Class” hydraulic performance
• Best choice for Lowest Life Cycle Cost
• ISO G6.3 balanced Stainless Steel impellers for vibration-free, improved, sustainable hydraulic performance, reduced corrosion potential, and application flexibility.
• Footed Volute maintains positioning during service and operation
• Back pullout design for ease of maintenance
• Internally Self-flushing mechanical seals
• Stainless steel shaft sleeve
• Heavy duty cast iron volute construction for 175 PSI working pressure
• Jacking bolts for ease of volute disassembly
• Gauge tappings
• Hydrostatic testing of each pump is standard
