Description

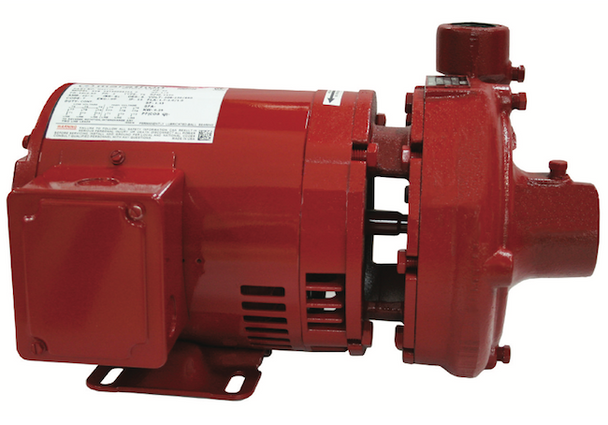

Bell & Gossett 168322LF e3514S Series e-1535 Pump 3/4HP
The Bell & Gossett 168322LF e3514S Series e-1535 Pump (3/4 HP) is a premium, high-efficiency centrifugal pump from the e-1535 line, featuring a lead-free construction and powerful 3/4 HP motor. This end suction, vertical in-line pump is engineered for optimal energy savings in demanding HVAC and plumbing applications. The e-1535 series is celebrated for its low life-cycle cost and superior hydraulic efficiency. Choose this dependable Bell & Gossett e-1535 Pump for high flow, significant head, and maximum energy savings in commercial systems.
168322LF Bell & Gossett e3514S Series e-1535 Pump 3/4HP, 1725 RPM single phase pump designed for heavy duty requirements in cooling tower, refrigeration, industrial and general service applications. This back-pullout pump offers ease of service in a close-coupled design. This low maintenance pump can be mounted vertically or horizontally to provide maximum flexibility. Ball bearing design and standard internally flushed mechanical seal provide long, dependable service. Foot-mounted, end-suction, close-coupled pump available in 3/4” through 1-1/2” sizes. Motor sizes 1/4 to 5 HP. Available in bronze-fitted and all bronze construction with flows to 240 GPM at 115 feet. Offered in 29 Stock part numbers as well as configurations thru e-1535 BTO.
|
MANUFACTURER:
|
Bell & Gossett
|
|
SERIES:
|
e-1535
|
|
PART NUMBER:
|
168322LF
|
|
MODEL:
|
e3514S
|
|
CONNECTION SIZE:
|
Suction: 2, Discharge: 1-1/2
|
|
CONSTRUCTION:
|
Cast Iron Bronze Fitted
|
|
PUMP TYPE:
|
Centrifugal
|
|
MOUNTING TYPE:
|
Foot Mounted Vertically or Horizontally
|
|
HORSEPOWER:
|
3/4 HP
|
|
MOTOR RPM:
|
1725 RPM
|
|
MOTOR PHASE:
|
Single Phase
|
|
VOLTAGE:
|
115/230
|
|
MAX WORKING TEMPERATURE:
|
250*F
|
|
WORKING PRESSURE:
|
175 psi (12 bar)
|
|
CYCLE:
|
60
|
