BluePrint Engines BP306MAXCTC Ford 306 365 HP Bronco Edition
Description

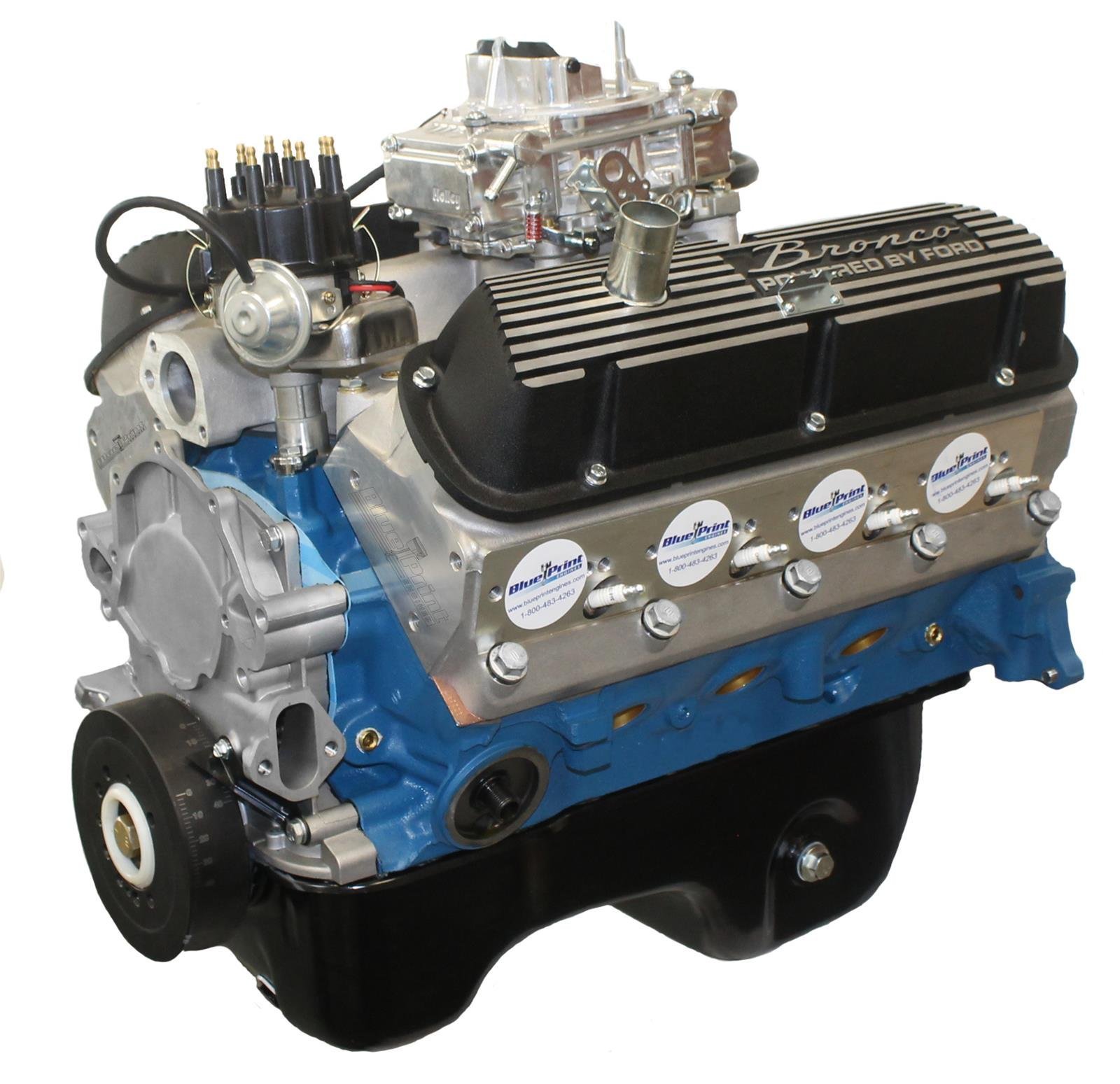

BluePrint BP306MAXCTC 365 HP Bronco Edition
BluePrint BP306MAXCTC Ford 306 365 HP Bronco Edition engines deliver a specialized sturdy engine architecture optimized for the unique requirements of classic Ford Bronco restorations. This 5.0L 306ci Windsor build features high-flow aluminum cylinder heads and a 9.2:1 compression ratio, engineered to produce a verified 365 horsepower with an emphasis on usable low-end torque. Built with a hydraulic roller camshaft and a precision-balanced assembly, this engine is the ultimate fit for enthusiasts demanding professional-grade performance in their off-road or street Bronco builds.
Integrating this ready-to-spec long block is simplified by the inclusion of a pre-tuned carburetor, intake manifold, and water pump, ensuring a streamlined installation process. The BluePrint BP306MAXCTC package is supported by a premium 30-Month / 50,000-mile limited warranty, providing long-term structural reliability for your project. Protected by a modern one-piece rear main seal and built on a seasoned cast-iron block, this Bronco Edition motor offers a balanced combination of vintage aesthetics and modern manufacturing precision for high-performance use.
Key Features of BluePrint High Performance BP306MAXCTC
- 5.0L 306ci displacement delivering 365 HP for Bronco-specific needs.
- Aluminum cylinder heads for maximum power delivery and cooling.
- Dressed configuration includes pre-installed induction and cooling components.
- Hydraulic roller camshaft ensures consistent valvetrain stability.
- External 50 oz. engine balance for smooth, vibration-free operation.
- Modern one-piece rear main seal prevents common fluid weeping.
- Standard 30-Month / 50,000-mile professional warranty included.
BP306MAXCTC Include:
- Intake Manifold
- Carburetor
- Distributor
- Oil Pan
- Valve Covers
- Timing Cover
- Water Pump
- Harmonic Balancer
BluePrint BP306MAXCTC 306 CID Bronco 365 HP Dressed Specs
| Brand | BluePrint Engines |
| Engine Model | BP306MAXCTC |
| Part Type | Crate Engines |
| Product Line | BluePrint Engines Ford 306 C.I.D. Bronco Edition 365 HP Dressed Long Blocks with Aluminum Heads |
| UPC | 00887753743657 |
| Crate Engine Family | Ford Windsor |
| Actual Engine Displacement | 5.0L / 306 C.I.D. |
| Cylinder Head Material | Aluminum |
| Engine Block Material | Cast Iron |
| Advertised Compression Ratio | 9.2:1 |
| Assembled | Yes |
| Engine Balance | External, 50 oz. imbalance |
| Cam Style | Hydraulic roller, OE roller |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | Yes |
| Intake Manifold Style | Carbureted |
| Cylinder Heads Included | Yes |
| Carburetor Included | Yes |
| Throttle Body Included | No |
| Distributor Included | Yes |
| Oil Pan Included | Yes |
| Valve Covers Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| Supercharger Included | No |
| Warranty Info | 30-Month / 50,000 Miles |
